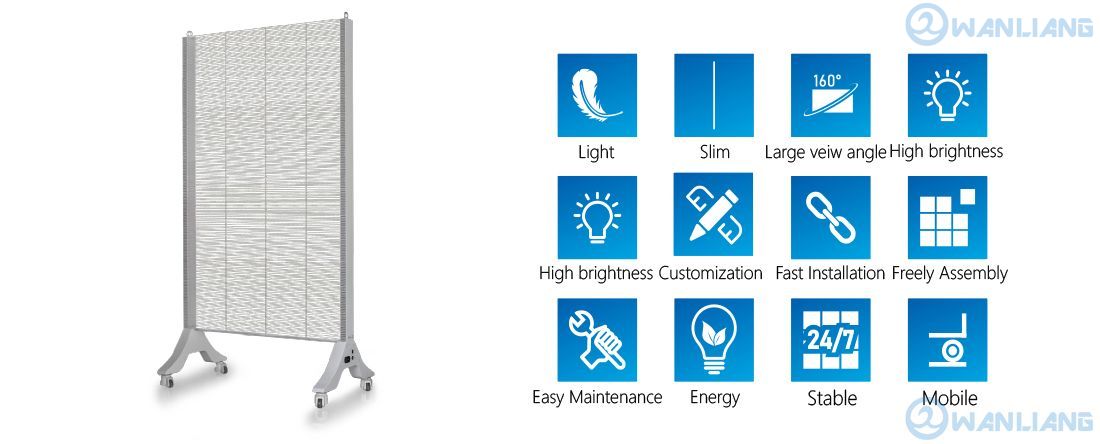

    Transparent Poster

    Module Size:customized
    Cabinet Size:customized
    Material Science:customized

    Product Feature:

    ●  Removable

    ●  High transparent rate, the highest can reach 80%;

    ●  Environmental Projection: no need air-con.

    ●  Easy maintenance: fast replaced module, support front service

    ●  Supported Hanging.


    ALL-IN-ONE HD LED screen warranties extraordinary pictorial performance and reliable undertaking with zero irritation. Incorporated with numerous interactive processes such as electronic whiteboards, touch-screen writing, remote conference, wireless projection, etc., it completely crosses the void between multimedia presentation and proficiency affiliation.

    The transparent led poster is a product that inherits formulates an adequate vitality and visual performance. The thin yet rigorous configuration makes it favorable to many scenarios. With wireless and seamless connection, the product can handily provide a HD display and visual feast, entirely transmitting the brand’s message.



    1. Limitless splicing unleash the imagination

    The high perseverance-led poster display operation can provide HD portrayals, seamlessly spliced, brilliant colors, of low sound, and comprehend real-time data transfer and interchange.


    2. High quality picture

    Entirely exhibit every outstanding detail of the HD pictures, giving rise to consumers an extraordinary pictorial impact.


    3. Wider color gamut

    Faultlessly distinguishes the blue/green/red color with the broad hue gamut; even the surface complexion could be adequately propagated.


    4. Accurate color modification and reduplication

    Precise color modification, sharper illumination and excellent color density. The steady evolution bestows you an immersive perception.

    The digital led poster emphasizes the creation and R&D for consumers’ desires, subsidizing robust and cut-edge commodities as adequately as the business outcomes.



    Parameter:


    Model

    JL2-5

    JL3-7

    Pixel Pitch(mm)

    H:2.6 V:5.2

    H:3.9 V:7.8

    Transparency Rate

    65%

    55%

    75

    Resolution(dot/ m²)

    73728

    32768

    Cabinet Resolution

    384x192

    256x128

    Weight(Kg/ m²)

    4.5

    7.5

    Refresh(Hz)

    5120

    5120

    Driving IC

    ICN2153

    ICN2153

    Scan Mode

    1/12

    1/8

    LED Type

    SMD1415

    SMD1515

    SMD1921

    SMD2020

    Brightness(cd/ m²)

    1200

    3500

    4500

    2500

    Lamp Life Span

    ≥ 100 000 hours

    Pixel Compose

    RGB all in one

    Grey Scale

    14bit

    Max Power Consumption(W/   m²)

    800

    Ave. Power Consumption(W/   m²)

    260

    LED Control System

    MooncellT120/NOVA

    Connection &   Control

    WiFi / DVI / HDMI   / DP / USB/RJ45 / Remote Internet control

    IP Level

    IP43

    Clean Ghosting

    Yes

    Input Power

    AC100~240V 50/60Hz

    Module Input Power

    DC4.7±0.2V

    Cabinet Size(mm)

    1000x500x80

    Cabinet Material

    Aluminum Profile

    Maintenance

    Front Maintenance

    Working Tempareture   and humidity

    Temperature : -10~40℃   ; Humidity: 10%-90%, non-condensing

    Installation

    Hanging (vertical   20pcs cabinet) 10 )/ Stacking / Fixed installation )

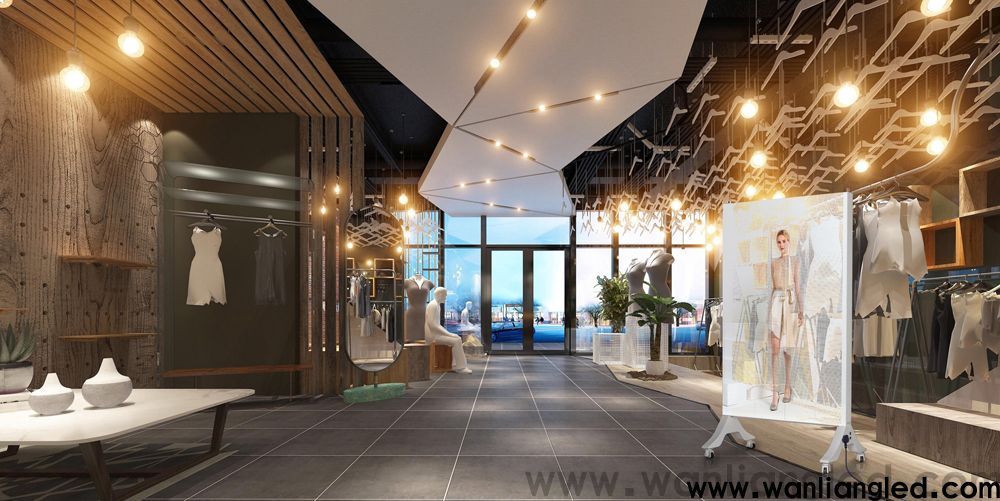

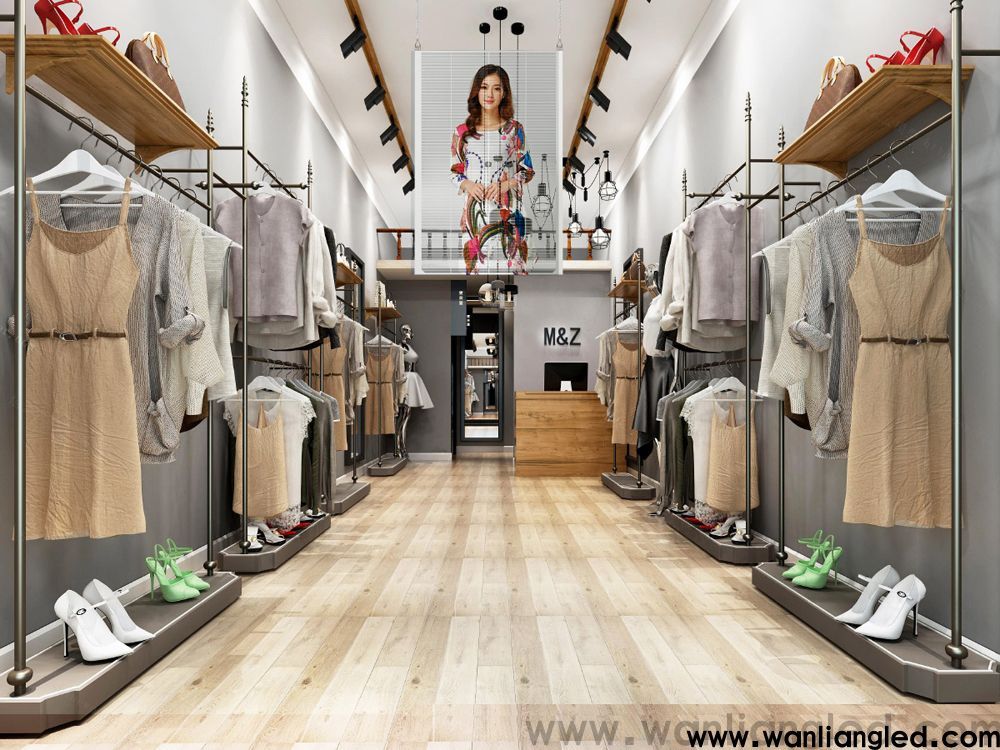

    Project cases:
