Transparent Foil LED Screen

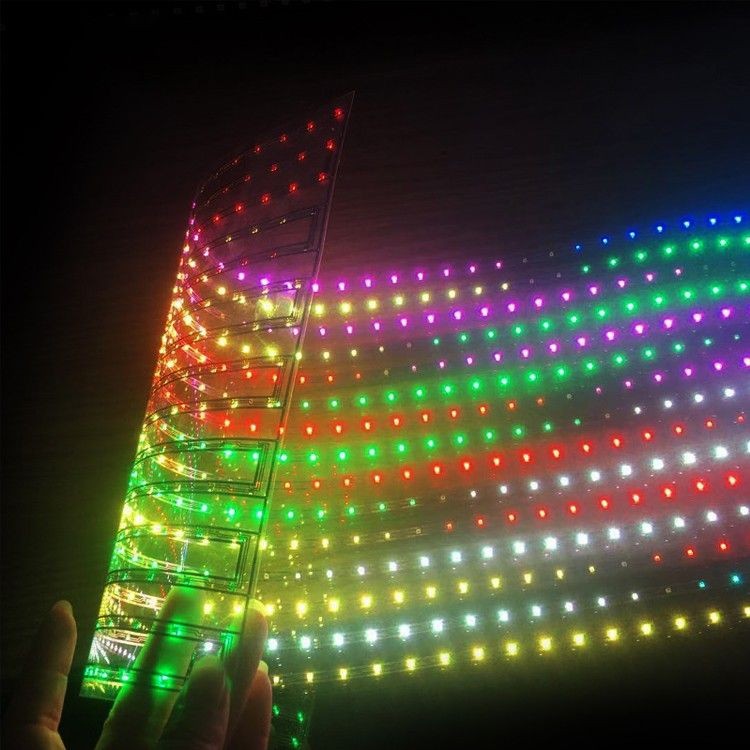

Soft transparent film LED screen

Soft transparent film LED screen.jpg

Product Feature:

  • Beyond all glass video displays,

  • Stick on window glass with self-adhesive film,

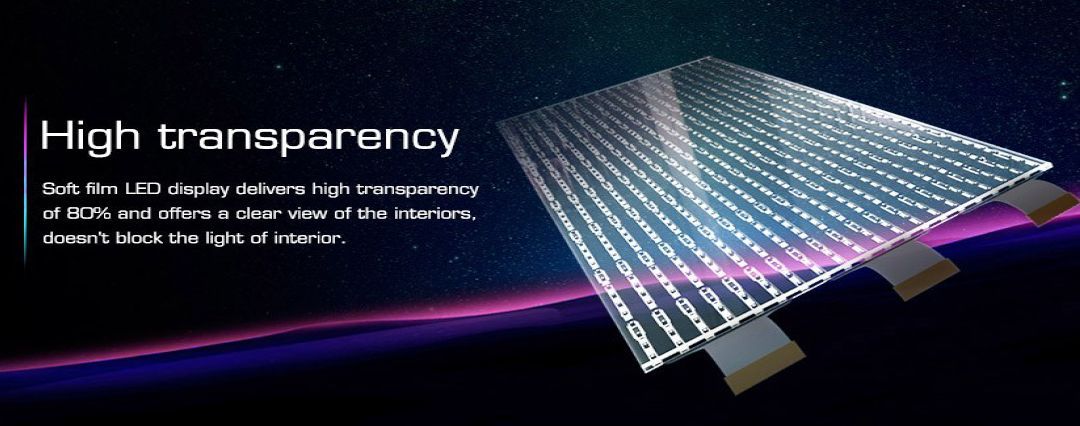

  • 95% transparency with invisible PCB,

  • Commercial LED Displays solutions.

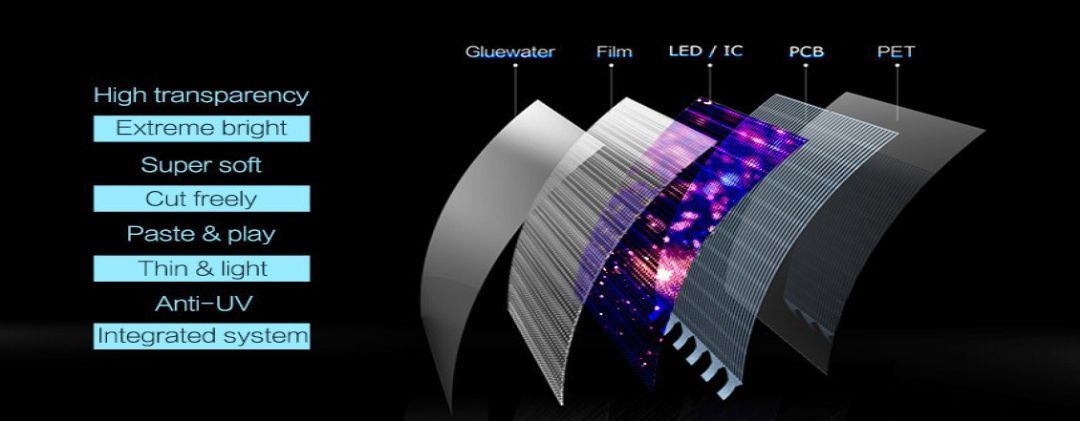

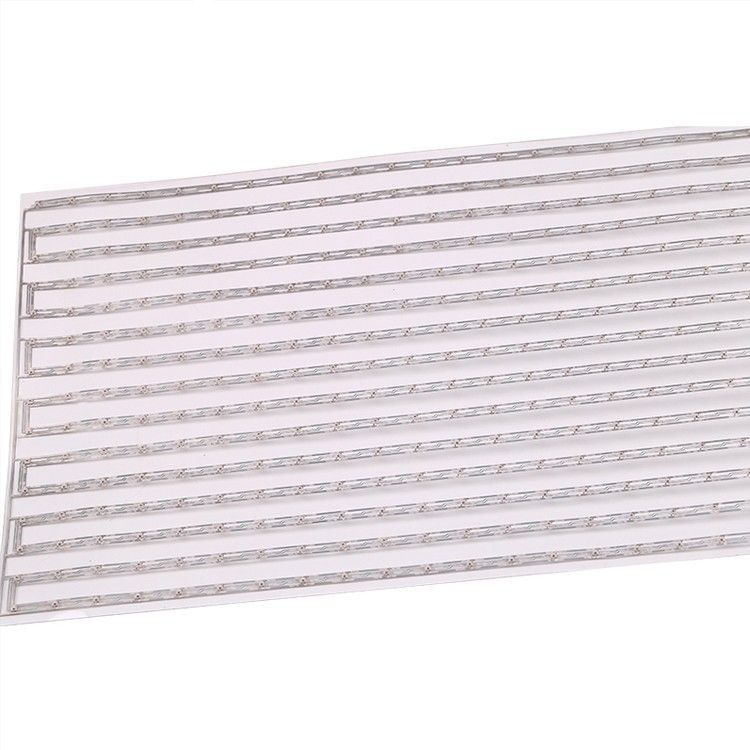

These screens are made using LED pixels inclined on a rubber based material. The insulation of complete screen is done through flexible transparent material which secures the complete circuit from damage. Below are some of the salient features of these screens:



Adjustable Angle



An enormous viewing angle wraps the bulk of cameras and audience.



Test aging

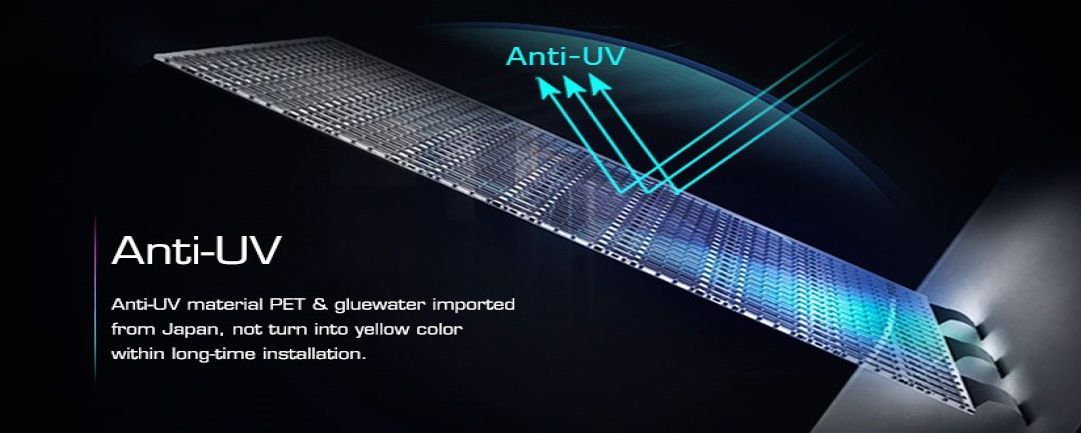

All-natural substances undergo rigid testing of low/high humidity and high temperature, anti-corrosion, along anti-ultraviolet rays.

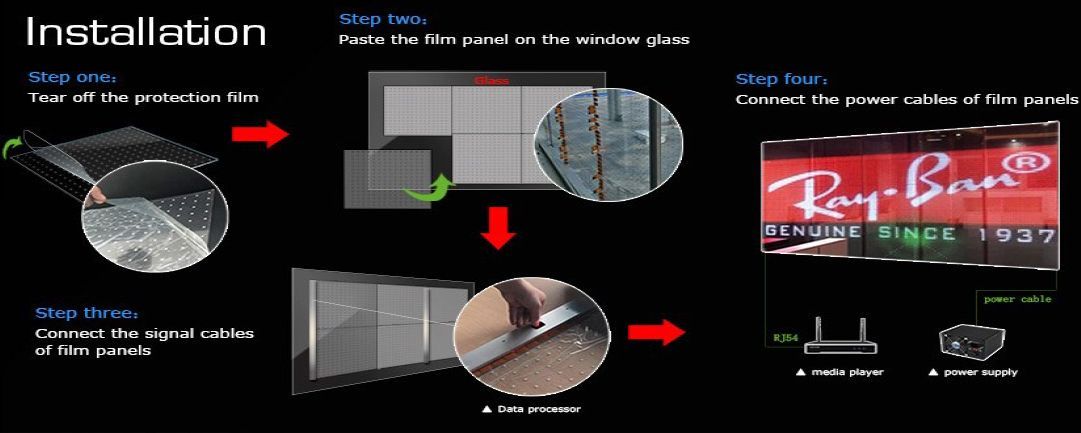

Simple Installation



Furnished with subordinate installation configuration, quick connect, single-person installation



Effective Maintenance



It is easy to supervise the module and power box individually.



Seamless Display



The progressive structure generates seamless display and visual impacts, giving you the excellent pictorial performance you wish from your LED screen.

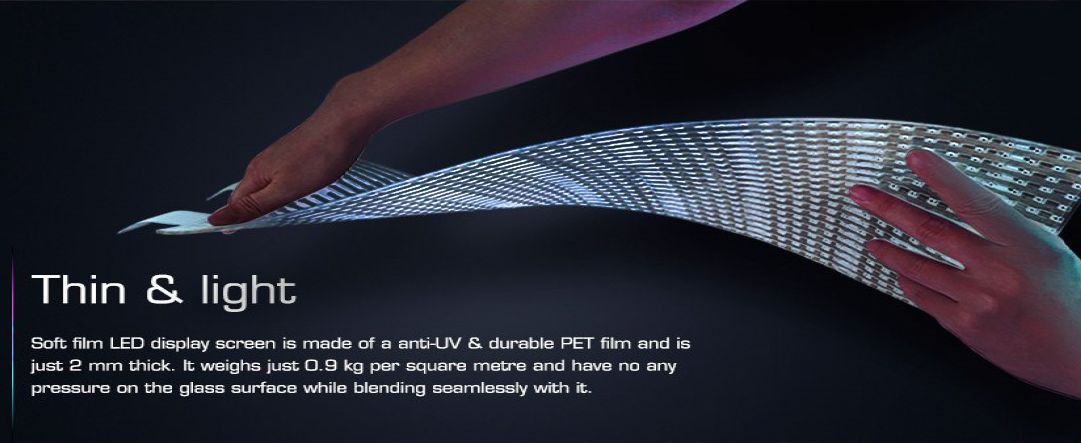

Light, Strong and Thin.



By utilizing superior materials and advanced technology, ultra-light, ultra-thin, the pressure of a sole module is barely 185g. Flexible screens could also be customized according to consumer needs, bending and swinging, design rolling, and other outcomes.



Broad Viewing Angle



The viewing slope is up to 160° horizontal and vertical, furnishing a broad viewing angle. Watching from five directions, it could, however, be the realistic and apparent picture in an LED display.

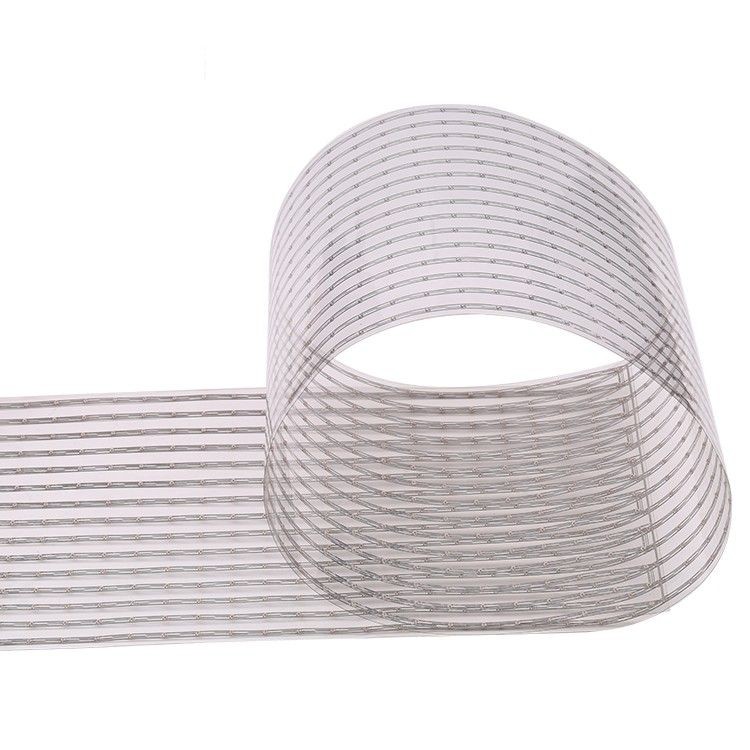

High Flexibility



The primary characteristic of LED displays is that the LED panel is smooth, flexible. Compared to the outdoor fixed LED displays and the indoor appointed LED display, the flexible LED displays could be formulated. It may be rolled, swung, and bent to make any pattern LED video wall as you prefer.


Soft transparent film LED screen.jpg

Parameter:

Mode

WLS-6

WLS-8

WLS-10

WLS-16

WLS-20

Pich (mm)

6.5mm

8.3mm

10.4mm

16.6mm

20mm

LED Type

SMD LED 1921

SMD LED 1921

SMD LED1921

SMD LED1921

SMD LED1921

Fim Size (LxWxT) / (mm)

500*200*2mm

500*200*2mm

500*200*2mm

500*200*2mm

500*200*2mm

Pixel Per Film

76*30

60*24

48*20

30*13

25*10

Material

Anti Uv PET+AL

Anti UV PET+AL

Anti UV PET+AL

Anti UV PET+AL

Anti Uv PET+AL

Weight(kg/m²)

2.6

24

2.3

2.2

2.2

Refresh Rate (Hz)

3840

3840

3840

3840

3840

Brightness (nits)

2000/6500 Optional

2000/6500 Optional

2000/6500 Optional

2000/5000 Optional

20005000 Optional

Transparency

>50%

> 60%

>65%

>70%

>80%

Westhering Reistance

Anti-yellowing

Anti-yellowing

Anti-yellowing

Ant-yellowing

Anti-yellowing

Color Temperature (K)

6500

6500

6500

6500

6500

Viewing Angle(H/V)(°)

140/140

140/140

140/140

140/140

140/140

Driving Type

Static

Static

Static

Static

Static

Operating Voltage(V)

AC220~DC48

AC220-DC48

AC220~DC48

AC220~DC48

AC220-DC48

Max Power Consumption (W/m²)

800

800

800

800

800

Average Power Consumption (W/m²)

270

270

270

270

270

Storage Temperature (°C)

-40~+ 85

-40~-85

-40~+85

-40~+ 85

-40~-85

Operating Temperatur (°C)

-20~ 60

-20--60

-20--60

-20--60

-20~.60

Storago Humidity (RH)

10%~90%

10% ~90%

10%~90%

105~90%

10% ~90%

Operting Humidity (RH

10%~90%

10%-90%

105-90%

10%-90%

10%-90

IP Rating

IP43

IP43

IP43

IP43

IP43

LED Lifetime (H)

100.000

100,000

100.000

100.000

100

Installation Type

OCAPasting

0CA Pasting

OCA Pasting

OCAPasting

OCA Pasting

Maintenance

Rear

Rear

Rear

Rear

Rear

Cerificate

CCC/CE

CCC/CE

CCC/CE

CCC/CE

CCC/CE

Soft transparent film LED screen.jpgSoft transparent film LED screen.jpgSoft transparent film LED screen.jpgSoft transparent film LED screen.jpgSoft transparent film LED screen.jpg

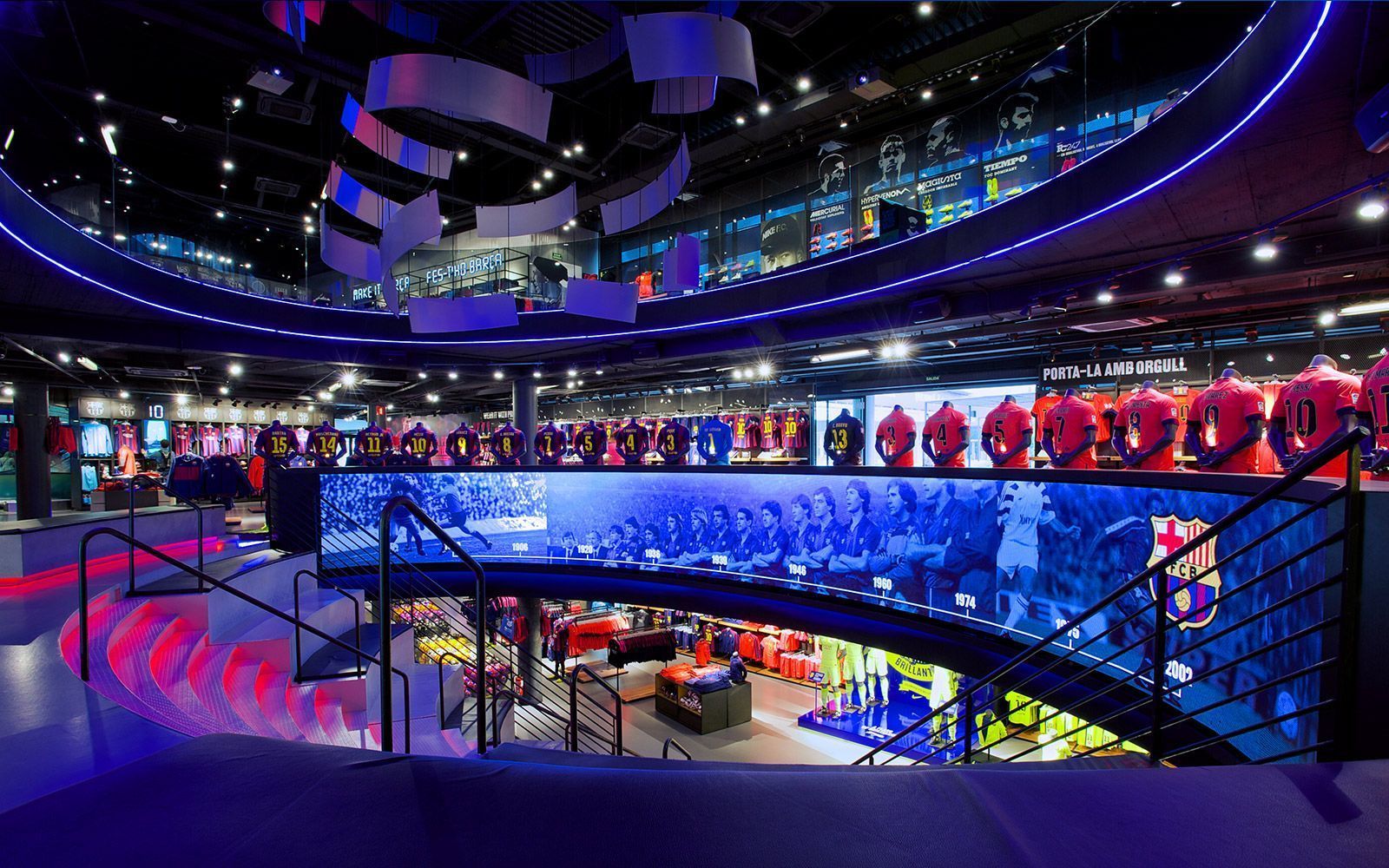

Project cases:
